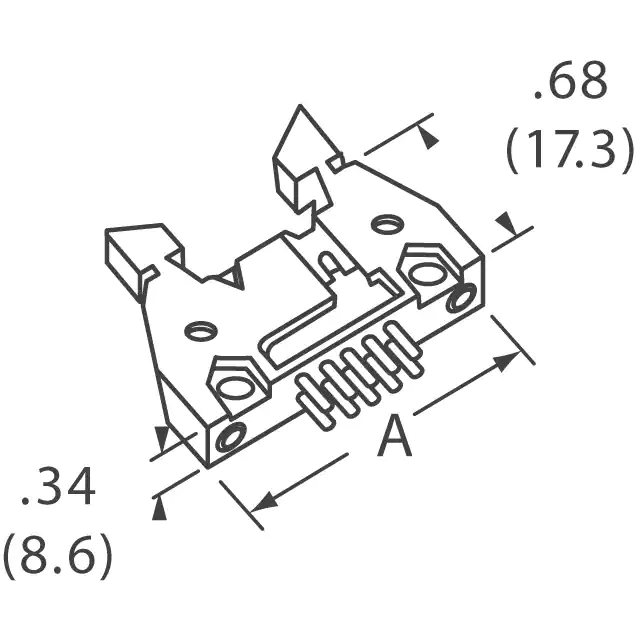

N3793-6202RB
N3793-6202RB
N3793-6202RB
Favorite Products
Share:

N3793-6202RB

N3793-6202RB
3M
CONN HEADER VERT 10POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Termination
Solder
Number of Rows
2
Style
Board to Board or Cable
Operating Temperature
-55°C ~ 105°C
Contact Shape
Square
Contact Type
Male Pin
Contact Length - Post
0.112" (2.84mm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Material Flammability Rating
UL94 V-0
Insulation Height
0.680" (17.27mm)
Features
Keying Slot, Mounting Flange
Insulation Color
Black
Series
3000
Package
Bulk
Connector Type
Header
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Number of Positions
10
Row Spacing - Mating
0.100" (2.54mm)
Contact Length - Mating
0.240" (6.10mm)
Ingress Protection
-
Base Product Number
N3793
Mfr
3M
Contact Finish - Mating
Gold
Contact Finish - Post
Tin
Contact Material
Copper Alloy
Current Rating (Amps)
1.75A
Product Status
Active
Pitch - Mating
0.100" (2.54mm)
Number of Positions Loaded
All
Mounting Type
Through Hole
Fastening Type
Latch Lock/Eject Hooks, Short
Overall Contact Length
0.652" (16.56mm)
Contact Finish Thickness - Post
200.0µin (5.08µm)
Shrouding
Shrouded - 4 Wall
Voltage Rating
-
Mated Stacking Heights
-
Applications
-
