N4614-2001RB
N4614-2001RB
Favorite Products
Share:

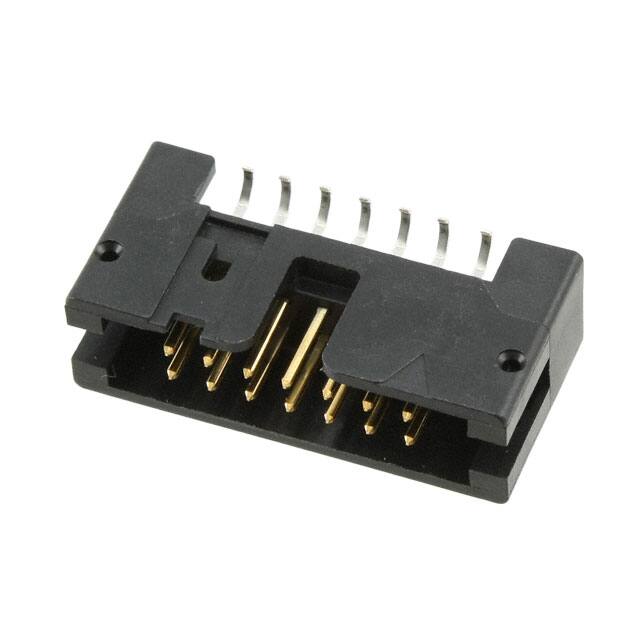

N4614-2001RB

N4614-2001RB
3M
CONN HEADER SMD 14POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Operating Temperature
-55°C ~ 105°C
Number of Rows
2
Material Flammability Rating
UL94 V-0
Insulation Height
0.525" (13.34mm)
Product Status
Obsolete
Row Spacing - Mating
0.100" (2.54mm)
Number of Positions Loaded
All
Termination
Solder
Mated Stacking Heights
-
Package
Bulk
Mounting Type
Surface Mount
Ingress Protection
-
Contact Finish Thickness - Post
300.0µin (7.62µm)
Style
Board to Cable/Wire
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features
Keying Slot
Mfr
3M
Number of Positions
14
Series
N4600
Pitch - Mating
0.100" (2.54mm)
Contact Length - Mating
0.243" (6.17mm)
Overall Contact Length
-
Contact Finish - Mating
Gold
Voltage Rating
-
Shrouding
Shrouded - 4 Wall
Contact Length - Post
-
Contact Material
Copper Alloy
Insulation Color
Black
Current Rating (Amps)
1.25A
Connector Type
Header
Fastening Type
Push-Pull
Contact Shape
Square
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Contact Finish - Post
Tin
Applications
-
Base Product Number
N4614
Contact Type
Male Pin
