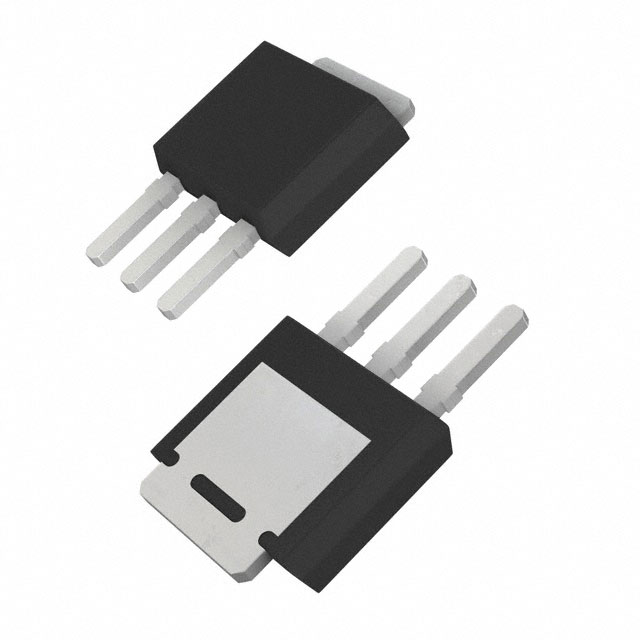

NTD5865NL-1G

Product Name NTD5865NL-1G

Manufacturer onsemi

Describe MOSFET N-CH 60V 46A IPAK

Classification: Transistors - FETs, MOSFETs - Single

Stock Available

RoHs:

RoHS Compliant

Datasheet

Datasheet

Customer Reference

Available In Stock

Please send RFQ, we will respond immediately

Just Fill in the content with an*

Contact Information

(You can also Log In and fill in automatically)

Message Content *

*

Company Name

*

Contact Name

*

Telephone

*

Email *

*

Product Attributes

Type PARAMETERS

Base Product Number

NTD58

Product Status

Obsolete

Current - Continuous Drain (Id) @ 25°C

46A (Tc)

Package / Case

TO-251-3 Short Leads, IPak, TO-251AA

Package

Tube

Supplier Device Package

I-PAK

Gate Charge (Qg) (Max) @ Vgs

29 nC @ 10 V

FET Type

N-Channel

Drain to Source Voltage (Vdss)

60 V

Drive Voltage (Max Rds On, Min Rds On)

4.5V, 10V

Operating Temperature

-55°C ~ 175°C (TJ)

Mounting Type

Through Hole

Mfr

onsemi

Technology

MOSFET (Metal Oxide)

Rds On (Max) @ Id, Vgs

16mOhm @ 20A, 10V

Vgs(th) (Max) @ Id

2V @ 250µA

FET Feature

-

Power Dissipation (Max)

71W (Tc)

Series

-

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

1400 pF @ 25 V
