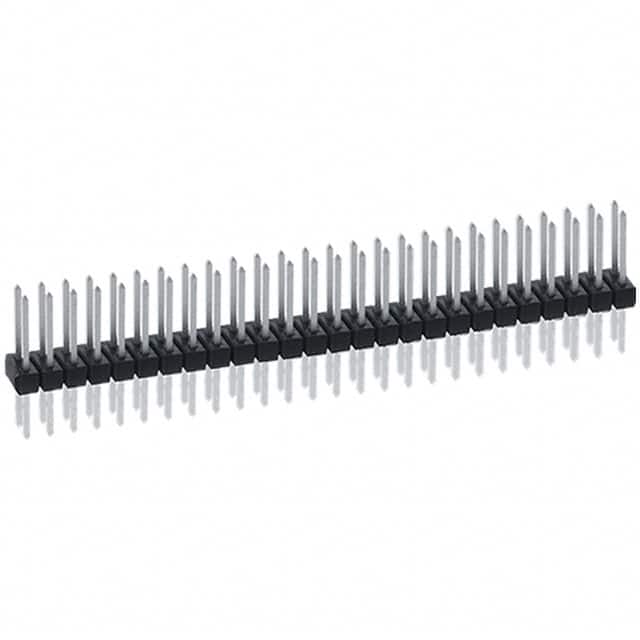

PEC26DFBN
PEC26DFBN
Favorite Products
Share:

PEC26DFBN

PEC26DFBN
Sullins Connector Solutions
CONN HEADER VERT 52POS 2.54MM
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Mated Stacking Heights
-
Base Product Number
PEC26
Number of Positions
52
Connector Type
Header, Breakaway
Contact Length - Post
0.220" (5.58mm)
Overall Contact Length
0.638" (16.21mm)
Contact Type
Male Pin
Contact Length - Mating
0.318" (8.08mm)
Contact Finish - Mating
Tin
Contact Finish Thickness - Mating
100.0µin (2.54µm)
Operating Temperature
-65°C ~ 125°C
Voltage Rating
-
Mfr
Sullins Connector Solutions
Contact Shape
Square
Contact Material
Phosphor Bronze
Features
-
Ingress Protection
-
Insulation Color
Black
Pitch - Mating
0.100" (2.54mm)
Number of Positions Loaded
All
Termination
Solder
Contact Finish - Post
Tin
Insulation Material
Polybutylene Terephthalate (PBT)
Material Flammability Rating
UL94 V-0
Series
-
Number of Rows
2
Product Status
Active
Mounting Type
Through Hole
Applications
-
Package
Bulk
Row Spacing - Mating
0.100" (2.54mm)
Style
Board to Board or Cable
Shrouding
Unshrouded
Insulation Height
0.100" (2.54mm)
Current Rating (Amps)
3A
Fastening Type
Push-Pull
Contact Finish Thickness - Post
100.0µin (2.54µm)
