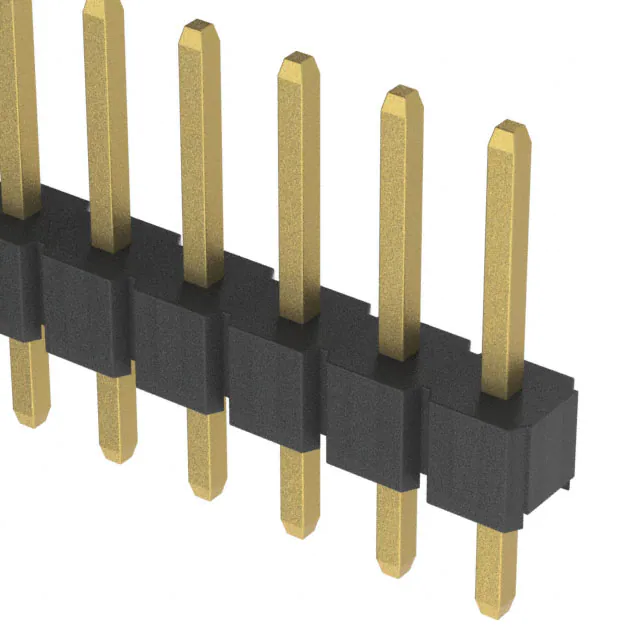

PH1-19-UA
PH1-19-UA
Favorite Products
Share:

PH1-19-UA

PH1-19-UA
Adam Tech
CONN HEADER VERT 19POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Style
Board to Board
Package
Bulk
Contact Shape
Square
Insulation Color
Black
Voltage Rating
250VAC
Mated Stacking Heights
-
Series
PH1
Termination
Solder
Contact Finish - Post
Gold
Contact Finish Thickness - Post
Flash
Pitch - Mating
0.100" (2.54mm)
Number of Positions
19
Contact Finish Thickness - Mating
Flash
Shrouding
Unshrouded
Mounting Type
Through Hole
Contact Length - Mating
0.236" (6.00mm)
Contact Length - Post
0.120" (3.05mm)
Overall Contact Length
0.454" (11.54mm)
Insulation Height
0.098" (2.50mm)
Connector Type
Header
Fastening Type
Push-Pull
Applications
-
Mfr
Adam Tech
Number of Positions Loaded
All
Operating Temperature
-40°C ~ 105°C
Product Status
Active
Row Spacing - Mating
-
Contact Material
Brass
Features
-
Base Product Number
PH1
Contact Type
Male Pin
Number of Rows
1
Contact Finish - Mating
Gold
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Ingress Protection
-
Material Flammability Rating
UL94 V-0
Current Rating (Amps)
3A
