PH2-80-UA
PH2-80-UA
Favorite Products
Share:

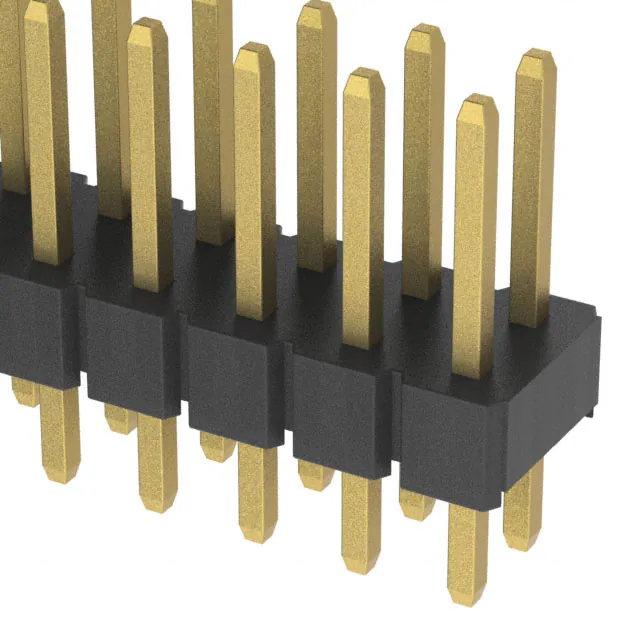

PH2-80-UA

PH2-80-UA
Adam Tech
CONN HEADER VERT 80POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Product Status
Active
Termination
Solder
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Gold
Material Flammability Rating
UL94 V-0
Insulation Color
Black
Series
PH2
Package
Bulk
Pitch - Mating
0.100" (2.54mm)
Contact Material
Brass
Features
-
Applications
-
Shrouding
Unshrouded
Contact Finish Thickness - Mating
Flash
Operating Temperature
-55°C ~ 105°C
Ingress Protection
-
Mated Stacking Heights
-
Contact Length - Mating
0.235" (5.97mm)
Insulation Height
0.098" (2.50mm)
Voltage Rating
250VAC
Number of Positions Loaded
All
Contact Finish Thickness - Post
Flash
Number of Positions
80
Contact Length - Post
0.120" (3.05mm)
Contact Finish - Mating
Gold
Mounting Type
Through Hole
Fastening Type
Push-Pull
Contact Shape
Square
Base Product Number
PH2
Contact Type
Male Pin
Style
Board to Board
Current Rating (Amps)
3A
Mfr
Adam Tech
Connector Type
Header
Number of Rows
2
Overall Contact Length
0.453" (11.50mm)
