PH2RA-22-UA
PH2RA-22-UA
Favorite Products
Share:

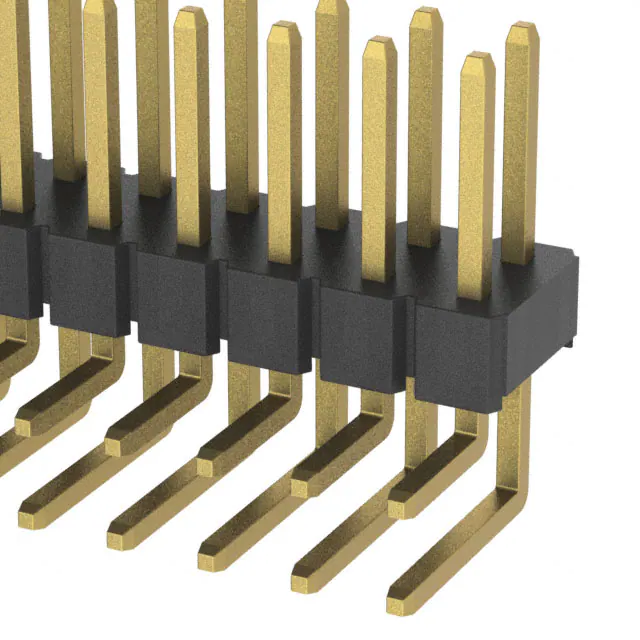

PH2RA-22-UA

PH2RA-22-UA
Adam Tech
CONN HEADER R/A 22POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Finish Thickness - Post
Flash
Insulation Height
0.197" (5.00mm)
Mated Stacking Heights
-
Number of Positions Loaded
All
Overall Contact Length
-
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature
-40°C ~ 105°C
Connector Type
Header
Number of Rows
2
Contact Length - Mating
0.235" (5.97mm)
Base Product Number
PH2RA
Series
PH2RA
Package
Bulk
Material Flammability Rating
UL94 V-0
Mfr
Adam Tech
Pitch - Mating
0.100" (2.54mm)
Row Spacing - Mating
0.100" (2.54mm)
Fastening Type
Push-Pull
Voltage Rating
250VAC
Number of Positions
22
Style
Board to Board
Contact Finish - Mating
Gold
Product Status
Active
Contact Type
Male Pin
Contact Finish Thickness - Mating
Flash
Insulation Color
Black
Current Rating (Amps)
3A
Shrouding
Unshrouded
Mounting Type
Through Hole, Right Angle
Contact Shape
Square
Contact Material
Brass
Features
-
Ingress Protection
-
Applications
-
Termination
Solder
Contact Length - Post
0.120" (3.05mm)
Contact Finish - Post
Gold
