PRPC023SFAN-RC
PRPC023SFAN-RC
Favorite Products
Share:

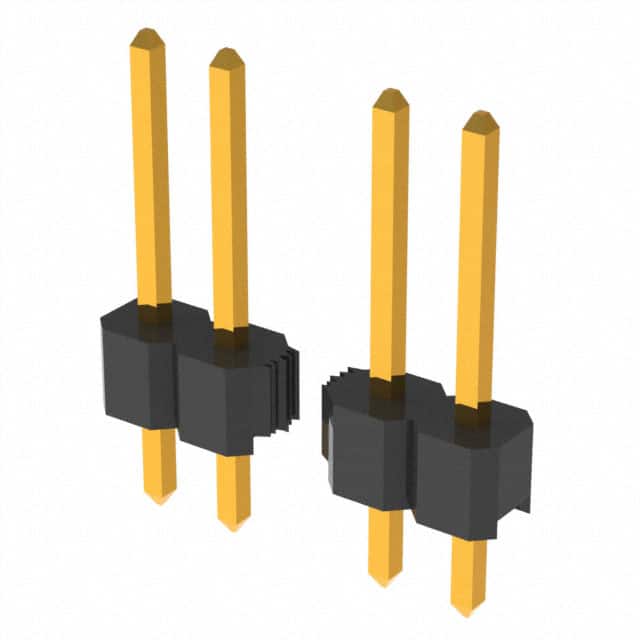

PRPC023SFAN-RC

PRPC023SFAN-RC
Sullins Connector Solutions
CONN HEADER VERT 23POS 2.54MM
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Series
-
Contact Length - Mating
0.318" (8.08mm)
Number of Positions Loaded
All
Insulation Height
0.098" (2.50mm)
Mounting Type
Through Hole
Connector Type
Header, Breakaway
Product Status
Active
Style
Board to Board or Cable
Shrouding
Unshrouded
Contact Shape
Square
Current Rating (Amps)
3A per Contact
Contact Finish Thickness - Post
Flash
Package
Bulk
Contact Length - Post
0.120" (3.05mm)
Operating Temperature
-40°C ~ 105°C
Ingress Protection
-
Mfr
Sullins Connector Solutions
Termination
Solder
Overall Contact Length
0.537" (13.63mm)
Insulation Material
Polybutylene Terephthalate (PBT)
Material Flammability Rating
UL94 V-0
Contact Type
Male Pin
Pitch - Mating
0.100" (2.54mm)
Row Spacing - Mating
-
Fastening Type
Push-Pull
Features
-
Voltage Rating
-
Number of Positions
23
Base Product Number
PRPC023
Number of Rows
1
Contact Finish - Post
Gold
Insulation Color
Black
Contact Finish - Mating
Gold
Mated Stacking Heights
-
Contact Finish Thickness - Mating
Flash
Contact Material
Brass
Applications
-
