SJ-3545
SJ-3545
Favorite Products
Share:

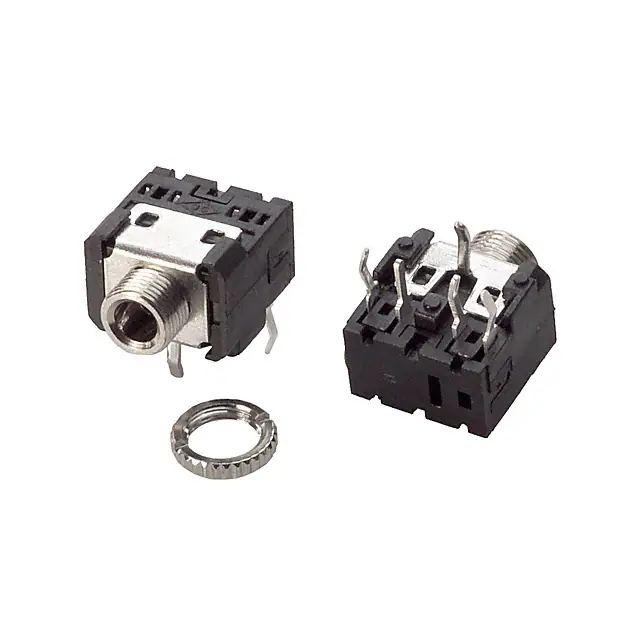

SJ-3545

SJ-3545
CUI Devices
CONN JACK STEREO 3.5MM R/A
Barrel - Audio Connectors
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Material - Plating
Nickel
Number of Positions/Contacts
3 Conductors, 5 Contacts
Thread Size
M6
Mfr
CUI Devices
Connector Type
Phone Jack
Signal Lines
Stereo (3 Conductor, TRS)
Mating Length/Depth
-
Body Color
Black
Includes
-
Series
SJ
Termination
Kinked Pin
Shielding
Unshielded
Body Material
-
Contact Material
Brass
Base Product Number
SJ-35
Package
Bulk
Housing Material
Polybutylene Terephthalate (PBT)
Cable Opening
-
Product Status
Obsolete
Industry Recognized Mating Diameter
3.50mm (0.141", 1/8", Mini Plug) - Headphone
Voltage - Rated
12VDC
Current Rating (Amps)
1 A
Operating Temperature
-25°C ~ 85°C
Gender
Female
Actual Diameter
0.142" (3.60mm)
Internal Switch(s)
Two Switches
Features
Thread Lock
Insulation Color
-
Mounting Type
Through Hole, Right Angle
Panel Hole Size
0.236" (5.99mm)
