SJ1-3545N
SJ1-3545N
SJ1-3545N
SJ1-3545N
Favorite Products
Share:

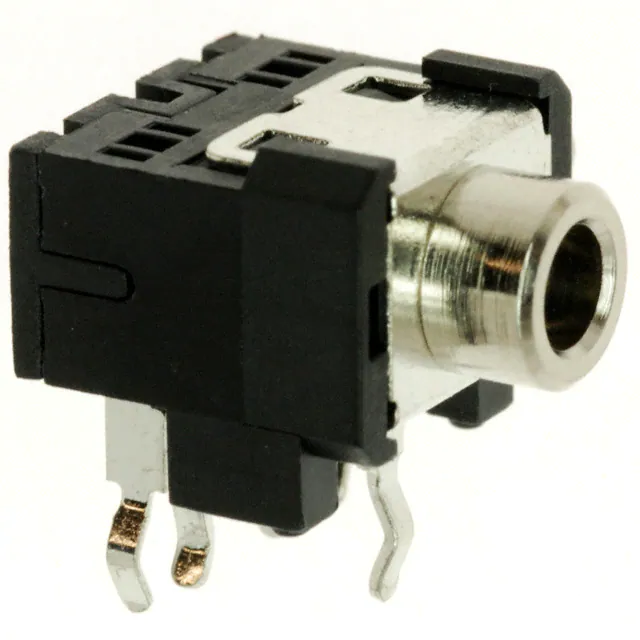

SJ1-3545N

SJ1-3545N
CUI Devices
CONN JACK STEREO 3.5MM R/A
Barrel - Audio Connectors
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Mfr
CUI Devices
Body Color
Black
Mounting Type
Through Hole, Right Angle
Connector Type
Phone Jack
Current Rating (Amps)
1 A
Series
SJ1
Features
-
Insulation Color
-
Cable Opening
-
Base Product Number
SJ1-35
Package
Bag
Contact Material - Plating
Nickel, Tin
Panel Hole Size
-
Mating Length/Depth
0.551" (14.00mm)
Body Material
Brass
Industry Recognized Mating Diameter
3.50mm (0.141", 1/8", Mini Plug) - Headphone
Product Status
Active
Gender
Female
Voltage - Rated
12VDC
Contact Material
Brass; Copper Alloy
Internal Switch(s)
Two Switches
Operating Temperature
-25°C ~ 85°C
Thread Size
-
Signal Lines
Stereo (3 Conductor, TRS)
Actual Diameter
0.142" (3.60mm)
Number of Positions/Contacts
3 Conductors, 5 Contacts
Includes
-
Termination
Kinked Pin
Shielding
Unshielded
Housing Material
Polybutylene Terephthalate (PBT)
