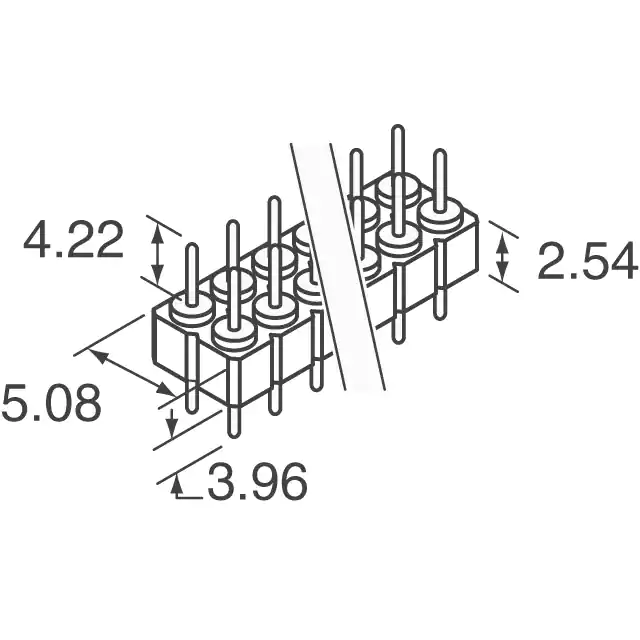

TD-115-T-A
TD-115-T-A
TD-115-T-A
Favorite Products
Share:

TD-115-T-A

TD-115-T-A
Samtec Inc.
CONN HEADER VERT 30POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Finish - Mating
Tin
Mfr
Samtec Inc.
Pitch - Mating
0.100" (2.54mm)
Insulation Material
Polyester, Glass Filled
Voltage Rating
-
Contact Shape
Circular
Contact Material
Phosphor Bronze
Ingress Protection
-
Current Rating (Amps)
-
Base Product Number
TD-115
Mounting Type
Through Hole
Fastening Type
Push-Pull
Contact Length - Mating
0.166" (4.22mm)
Style
Board to Board
Overall Contact Length
0.477" (12.12mm)
Insulation Height
0.100" (2.54mm)
Contact Finish Thickness - Post
-
Package
Bulk
Connector Type
Header
Number of Positions
30
Number of Positions Loaded
All
Termination
Solder
Contact Finish - Post
Tin
Features
-
Insulation Color
Black
Contact Type
Male Pin
Applications
-
Series
TD
Row Spacing - Mating
0.100" (2.54mm)
Shrouding
Unshrouded
Material Flammability Rating
UL94 V-0
Product Status
Active
Contact Length - Post
0.156" (3.96mm)
Contact Finish Thickness - Mating
200.0µin (5.08µm)
Mated Stacking Heights
-
Number of Rows
2
Operating Temperature
-55°C ~ 105°C
