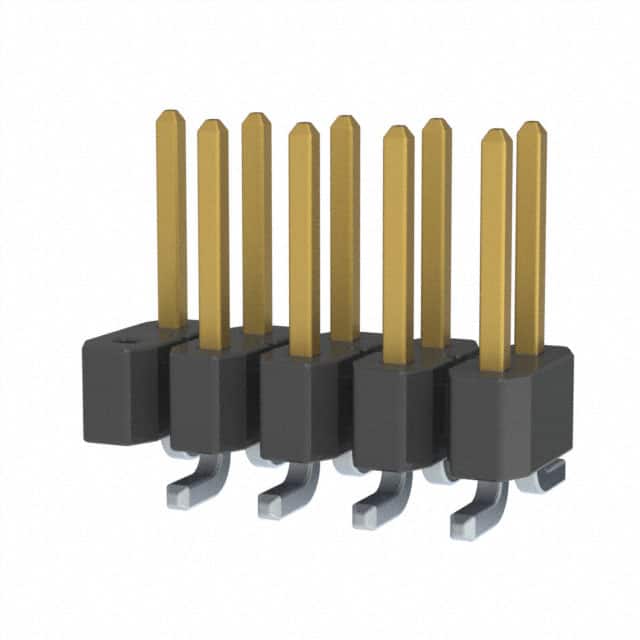

TSM-105-01-F-DV-009
TSM-105-01-F-DV-009
Favorite Products
Share:

TSM-105-01-F-DV-009

TSM-105-01-F-DV-009
Samtec Inc.
CONN HEADER SMD 10POS 2.54MM
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Termination
Solder
Ingress Protection
-
Contact Type
Male Pin
Mounting Type
Surface Mount
Number of Positions
10
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Mating
Gold
Operating Temperature
-55°C ~ 125°C
Material Flammability Rating
UL94 V-0
Mated Stacking Heights
-
Contact Finish Thickness - Post
-
Contact Length - Post
-
Insulation Height
0.100" (2.54mm)
Contact Shape
Square
Insulation Material
Liquid Crystal Polymer (LCP)
Mfr
Samtec Inc.
Connector Type
Header
Fastening Type
Push-Pull
Contact Length - Mating
0.230" (5.84mm)
Overall Contact Length
-
Contact Finish - Post
Tin
Insulation Color
Black
Voltage Rating
-
Base Product Number
TSM-105
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Contact Material
Phosphor Bronze
Contact Finish Thickness - Mating
3.00µin (0.076µm)
Package
Tube
Product Status
Active
Number of Positions Loaded
9
Style
Board to Board or Cable
Features
-
Current Rating (Amps)
-
Applications
-
Series
TSM
Shrouding
Unshrouded
