TSM-105-01-T-DV-010
TSM-105-01-T-DV-010
Favorite Products
Share:

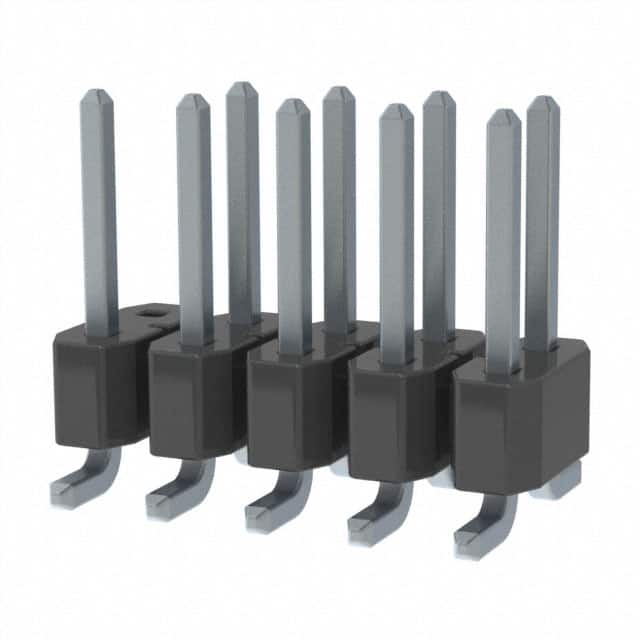

TSM-105-01-T-DV-010

TSM-105-01-T-DV-010
Samtec Inc.
CONN HEADER SMD 10POS 2.54MM
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Length - Post
-
Base Product Number
TSM-105
Insulation Material
Liquid Crystal Polymer (LCP)
Product Status
Active
Pitch - Mating
0.100" (2.54mm)
Number of Positions
10
Insulation Color
Black
Contact Finish Thickness - Post
-
Series
TSM
Contact Length - Mating
0.230" (5.84mm)
Style
Board to Board or Cable
Fastening Type
Push-Pull
Overall Contact Length
-
Contact Finish - Mating
Tin
Features
-
Material Flammability Rating
UL94 V-0
Row Spacing - Mating
0.100" (2.54mm)
Shrouding
Unshrouded
Mounting Type
Surface Mount
Insulation Height
0.100" (2.54mm)
Contact Shape
Square
Mated Stacking Heights
-
Applications
-
Number of Rows
2
Number of Positions Loaded
9
Contact Finish Thickness - Mating
-
Current Rating (Amps)
-
Voltage Rating
-
Contact Type
Male Pin
Contact Material
Phosphor Bronze
Contact Finish - Post
Tin
Ingress Protection
-
Mfr
Samtec Inc.
Package
Tube
Connector Type
Header
Termination
Solder
Operating Temperature
-55°C ~ 105°C
