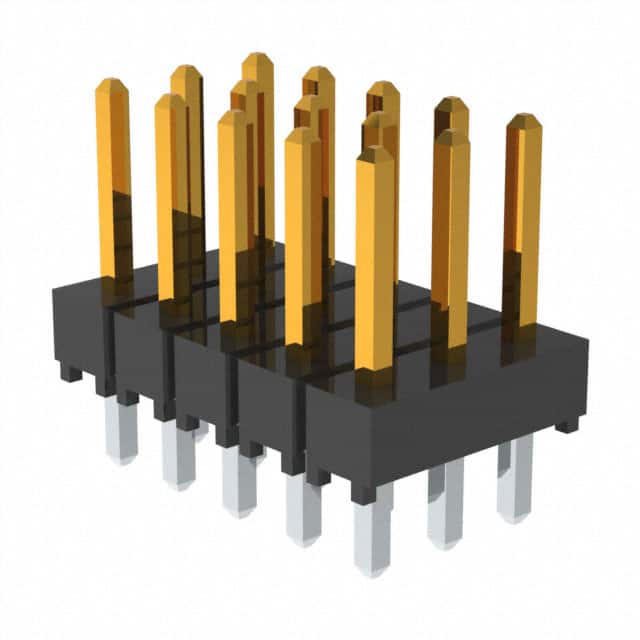

TSW-105-07-F-T
TSW-105-07-F-T
Favorite Products
Share:

TSW-105-07-F-T

TSW-105-07-F-T
Samtec Inc.
CONN HEADER VERT 15POS 2.54MM
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Mounting Type
Through Hole
Voltage Rating
-
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Pitch - Mating
0.100" (2.54mm)
Applications
-
Connector Type
Header
Number of Rows
3
Contact Finish - Post
Tin
Operating Temperature
-55°C ~ 125°C
Ingress Protection
-
Material Flammability Rating
UL94 V-0
Current Rating (Amps)
-
Contact Length - Mating
0.230" (5.84mm)
Contact Finish Thickness - Mating
3.00µin (0.076µm)
Contact Finish Thickness - Post
-
Product Status
Active
Style
Board to Board or Cable
Termination
Solder
Row Spacing - Mating
0.100" (2.54mm)
Contact Material
Phosphor Bronze
Insulation Material
Polybutylene Terephthalate (PBT)
Features
-
Package
Bulk
Overall Contact Length
0.430" (10.92mm)
Contact Shape
Square
Mated Stacking Heights
-
Base Product Number
TSW-105
Mfr
Samtec Inc.
Number of Positions
15
Contact Length - Post
0.100" (2.54mm)
Insulation Height
0.100" (2.54mm)
Insulation Color
Black
Series
TSW
Contact Type
Male Pin
Shrouding
Unshrouded
Fastening Type
Push-Pull
