XF2U-2015-3A
XF2U-2015-3A
XF2U-2015-3A
XF2U-2015-3A
Favorite Products
Share:

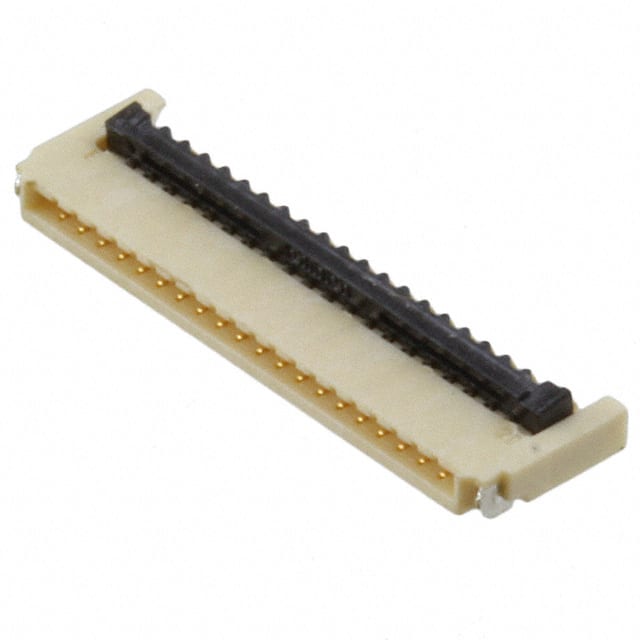

XF2U-2015-3A

XF2U-2015-3A
Omron Electronics Inc-EMC Div
CONN FPC 20POS 0.5MM R/A
FFC, FPC (Flat Flexible) Connector Assemblies
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Connector/Contact Type
Contacts, Top and Bottom
Current Rating (Amps)
0.5A
Housing Material
Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating
50V
Actuator Color
Black
Package
Tape & Reel (TR)^^Cut Tape (CT)
Contact Finish Thickness
5.90µin (0.150µm)
Number of Positions
20
Pitch
0.020" (0.50mm)
Height Above Board
0.035" (0.88mm)
Mating Cycles
20
Mounting Type
Surface Mount, Right Angle
FFC, FCB Thickness
0.20mm
Contact Material
Copper Alloy
Mfr
Omron Electronics Inc-EMC Div
Flat Flex Type
FPC
Contact Finish
Gold
Housing Color
Natural
Series
XF2U
Termination
Solder
Actuator Material
Liquid Crystal Polymer (LCP), Halogen Free
Cable End Type
Tapered
Operating Temperature
-30°C ~ 85°C
Product Status
Obsolete
Locking Feature
Rotary Lock, Backlock
Features
-
Material Flammability Rating
UL94 V-0
