ZSS-105-01-S-D-515-LL
ZSS-105-01-S-D-515-LL
Favorite Products
Share:

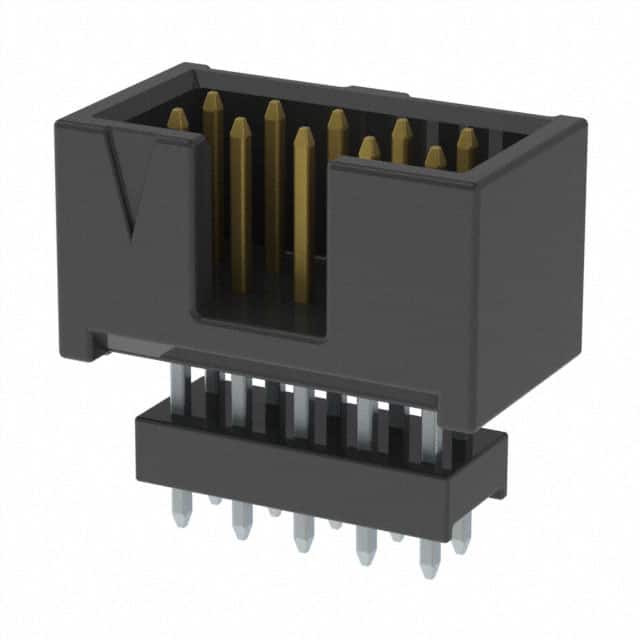

ZSS-105-01-S-D-515-LL

ZSS-105-01-S-D-515-LL
Samtec Inc.
CONN HDR .100" 10POS
Headers, Male Pins
Available
RoHS Compliant
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Row Spacing - Mating
0.100" (2.54mm)
Contact Material
Phosphor Bronze
Pitch - Mating
0.100" (2.54mm)
Contact Finish - Mating
Gold
Mfr
Samtec Inc.
Contact Length - Mating
0.250" (6.35mm)
Features
Keying Slot
Contact Finish Thickness - Post
-
Style
Board to Board or Cable
Overall Contact Length
0.630" (16.00mm)
Contact Shape
Square
Series
Flex Stack, ZSS
Insulation Material
Polyester, Glass Filled
Operating Temperature
-55°C ~ 125°C
Ingress Protection
-
Number of Positions
10
Number of Rows
2
Mounting Type
Through Hole
Termination
Kinked Pin, Solder
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Mated Stacking Heights
-
Contact Length - Post
0.115" (2.92mm)
Package
Bulk
Connector Type
Header, Elevated
Contact Finish - Post
Tin
Contact Type
Male Pin
Shrouding
Shrouded - 4 Wall
Material Flammability Rating
UL94 V-0
Insulation Color
Black
Voltage Rating
-
Base Product Number
ZSS-105
Fastening Type
Push-Pull
Product Status
Active
Number of Positions Loaded
All
Insulation Height
0.515" (13.08mm)
Current Rating (Amps)
3A
Applications
-
