The Complete Guide to Touch Sensors

The Complete Guide to Touch Sensors

March 11 , 2024 0

Touch sensors have become an integral part of our daily lives, revolutionizing the way we interact with technology and enabling seamless user experiences across various devices. From smartphones to kitchen appliances, touch sensors have permeated nearly every aspect of modern technology. In this comprehensive guide, we will delve into the workings of touch sensors, their diverse applications, and the different types available in the market.

What Is a Touch Sensor?

A touch sensor is a type of electronic device that detects physical contact or proximity to an object. It works by converting tactile interactions into electrical signals, which can then be interpreted by a device or system. Touch sensors are commonly used in various applications, ranging from consumer electronics to industrial machinery, to provide intuitive and responsive user interfaces.

Types of Touch Sensors

Touch sensors come in several different types, each suited to specific applications and environments:

1.Capacitive Touch Sensors: Utilize changes in capacitance to detect touch, commonly found in smartphones and tablets.
2.Resistive Touch Sensors: Detect touch by measuring changes in resistance, often used in ATM machines and handheld GPS devices.
3.Surface Acoustic Wave (SAW) Sensors: Utilize ultrasonic waves to detect touch, ideal for large displays and outdoor applications.
4.Optical Touch Sensors: Rely on light modulation to detect touch, commonly used in public kiosks and information displays.
5.Infrared Touch Sensors: Utilize infrared light beams to detect touch, suitable for interactive whiteboards and gaming consoles.

How Capacitive Touch Sensors Work?

Capacitive touch technology derives its name from its reliance on capacitive coupling, which detects conductive materials or those with a different dielectric than air. In this context, the human body, particularly the fingers, serves as a conductor for electrical charge.

The method by which it pinpoints the location of a finger on the screen involves monitoring the alteration of the local electrostatic field when the finger makes contact with the capacitive surface. An image processing controller continually observes the electrostatic field or the movement of each miniature capacitor to precisely determine where the finger touched the screen. Refer to Figure 1 for a helpful diagram provided by TCI.ed illustrating how this process tracks the electrostatic field.

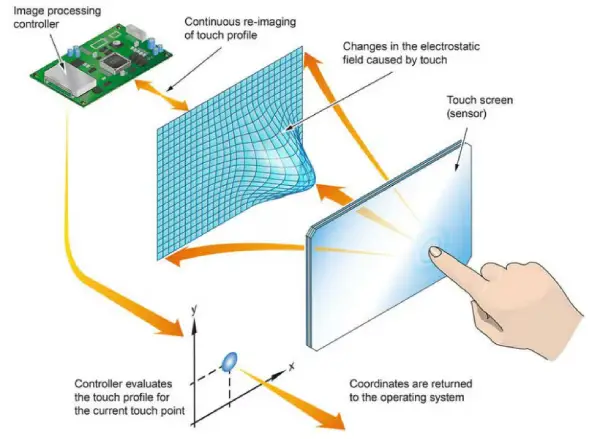

How the image processing controller evaluates touchpoints.

Capacitive touchscreens offer several advantages, including enhanced image clarity and brightness due to the presence of a glass layer, heightened touch sensitivity, and support for multi-touch functionality. These qualities make them particularly well-suited for smartphones, explaining their prevalence in devices such as iPhones, Samsung Galaxy models, and HTC phones. However, there are some drawbacks to using capacitive touchscreens compared to resistive ones. They rely on the conductivity of the human body, rendering them incompatible with gloved operation unless the gloves incorporate conductive materials. Additionally, capacitive touchscreens tend to be more costly, and their glass construction makes them more susceptible to damage from impacts.

How Resistive Touch Sensors Work?

The alternative type of touch screen/sensor is known as resistive. In contrast to capacitive touch sensors, which consist solely of a glass layer, resistive touch sensors incorporate multiple layers, with the primary ones being a flexible plastic layer and a glass layer.

The front surface of a resistive touch sensor features a pliable, scratch-resistant plastic sheet coated with a conductive material, typically Indium Tin Oxide (ITO), on its underside. The second layer, also coated with ITO, is composed of either glass or rigid plastic. When pressure is applied to the flexible plastic layer, whether by a finger or a stylus, it makes contact with the second layer, measuring the resistance of both layers at the point of contact. Refer to Figure 2 for an illustration of this process.

Advantages of resistive touch sensors compared to capacitive ones include their compatibility with finger input, gloves, and styluses, their high resistance to dust and water, and their lower production costs. However, there are some drawbacks associated with resistive touch sensors. They are less sensitive, requiring more pressure on the screen to register input. Additionally, they tend to exhibit poor contrast due to the additional reflection caused by the extra layer of material placed over the screen, and they do not support multi-touch functionality.

Key Applications of Touch Sensors

Touch sensors have become ubiquitous in various electronic devices and systems due to their versatility and ease of use. Some key applications include:

1.Consumer Electronics: Touch sensors are widely used in smartphones, tablets, laptops, and smartwatches for user interaction. They enable functionalities such as tapping, swiping, pinching, and multi-touch gestures.

2.Automotive Industry: Touch sensors are integrated into car infotainment systems, dashboard controls, and touchscreens for navigation, climate control, entertainment, and vehicle settings. They enhance the user experience and provide intuitive interfaces for drivers and passengers.

3.Industrial Control Systems: Touch sensors are employed in industrial settings for controlling machinery, monitoring processes, and interfacing with equipment. They offer reliable input methods for operators and facilitate efficient operation of industrial systems.

4.Medical Devices: Touch sensors are used in medical devices such as touch-sensitive displays in medical monitors, diagnostic equipment, and patient monitoring systems. They enable healthcare professionals to interact with the devices easily and efficiently.

5.Gaming Consoles and Arcade Machines: Touch sensors are integrated into gaming consoles, handheld gaming devices, and arcade machines to provide interactive gaming experiences. They enable players to control characters, navigate menus, and interact with virtual environments.

6.Retail and Point-of-Sale (POS) Systems: Touch sensors are utilized in retail environments for self-service kiosks, digital signage, and interactive displays. They facilitate customer engagement, streamline transactions, and improve the overall shopping experience.

7.Home Automation and IoT Devices: Touch sensors are incorporated into smart home devices such as touch-sensitive light switches, thermostats, and home automation controllers. They enable users to control and monitor various aspects of their home environment with ease.

8.Public Information Systems: Touch sensors are deployed in public spaces for interactive kiosks, wayfinding systems, ticket vending machines, and information displays. They provide users with access to relevant information and services in public settings.

9.Security Systems: Touch sensors are used in security applications for biometric authentication, access control panels, and keypad entry systems. They offer secure and convenient methods for verifying user identities and controlling access to sensitive areas.

10.Education and Training: Touch sensors are integrated into interactive whiteboards, educational tablets, and training simulators to facilitate interactive learning experiences. They enable educators and trainers to engage learners effectively and enhance retention of information.
