The new era uses quantum computing modeling

The new era uses quantum computing modeling

March 12 , 2024 0

Quantum computing, which uses the principles of quantum mechanics, has become a cutting-edge technology that has revolutionized the computing world.
Quantum computing takes advantage of the special properties of qubits, which can exist in multiple states at the same time due to the emergence of superposition and entanglement. This inherent parallelism allows quantum computers to solve complex problems faster and exponentially faster (relative to classical computers). As a result, the potential applications of quantum computing span many industries, including the pharmaceutical and healthcare sectors, encryption and cybersecurity, and financial services.
As one of the main components of electronic design automation, device modeling plays a crucial role in understanding, designing, and optimizing the behavior of quantum devices. However, device modeling itself faces a series of challenges.

Quantum Device Modeling Challenges

Quantum noise and decoherence are fundamental challenges in quantum device modeling. Qubits are the basic unit of quantum information and are extremely sensitive to the environment. They are easily entangled with external factors, resulting in a loss of quantum coherence. This phenomenon, known as decoherence, has major implications for the reliability and stability of quantum computing.

Device modeling must take into account a variety of noise and decoherence sources, including thermal fluctuations, electromagnetic interference, and even cosmic rays. Developing accurate models that capture the dynamics of quantum systems is a complex task.
To reduce thermal noise and maintain the stability of the quantum state, quantum computing uses low temperatures. But there are several factors that make it difficult for devices to operate at low temperatures, including:
· Thermal effect

At low temperatures, the thermal effect becomes not negligible. How to accurately model heat dissipation, thermal conductivity, and temperature gradient is critical to understanding the behavior of quantum devices.
· Material characteristics

At low temperatures, the properties of the material change dramatically. These include electrical conductivity, thermal conductivity and mechanical properties. In addition, quantum effects such as tunneling become more important, and particles may also behave differently than predicted by classical models.
· Superconductivity

The use of superconducting qubits is one of the most promising approaches to developing quantum computers. Some quantum computers, particularly those based on superconducting qubits, typically operate at temperatures close to absolute zero (-273.15°C or 0K). At these temperatures, certain substances become superconductors, meaning they have zero electrical resistance.
Historically, device modeling has focused on CMOS models, which are widely used in integrated circuit design as the basis for traditional computers. Unlike ics, qubits are at the heart of quantum computing, though CMOS device modeling can also be used for a variety of quantum computing devices.

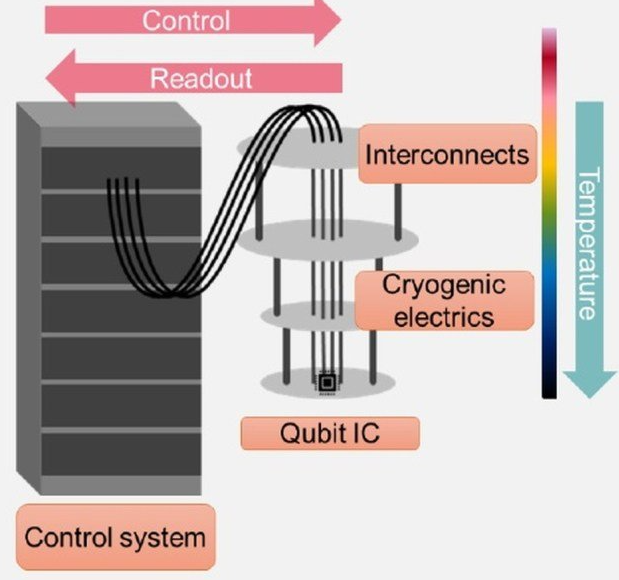

Qubit ics are commonly used to connect qubits to control and read signals. Using a typical low-temperature quantum computing system as an example (figure below), it can be seen that the control system will go through many levels of interconnections and circuits before finally reaching the qubit IC. In the qubit IC, the temperature will gradually drop from the ambient temperature in the control system to a low temperature of less than 100mK.

The design and manufacturing process of qubit integrated circuits is similar to that of traditional integrated circuits. That being said, the quantum manufacturing process design Kit is particularly important to the circuit design process. The devices in a qubit IC can also be passive devices or transistors. This will depend on the qubit platform used.

Based on the vast majority of (classical) IC application designs over the past decade, semiconductor device modeling typically requires covering temperatures from -40 to 175°C(233.15 to 448.15K). However, quantum applications can function at temperatures as low as 4K.

As a result, current models used by semiconductor manufacturers may not be able to effectively capture the behavior of devices at low temperatures, which can lead to unexpected design problems. To adapt to deep temperatures, the device modeling team is exploring new approaches to characterization and simulation.

Keysight Device Modeling Solution

To better describe the electrical behavior of novel systems such as quantum computers, modeling engineers will create a new set of equations. The most popular method over the past few years is to use Verilog-A code, or another C-code-like script that will be used to write the equations. Next, these algorithms are connected to a commercial SPICE simulator so that the simulation can be run and the model parameters obtained. When modeling engineers use newly developed models to extract parameters, they also face a new difficulty.

As a professional electronic design and test solution provider, Keysight offers a comprehensive quantum device modeling suite through its PathWave platform (see Figure 2).

Figure 2: Keysight device modeling solution portfolio.
Keysight solutions leverage and extend device modeling from traditional semiconductor devices to cryogenic devices to new device architectures to meet customer needs for quantum computing. In addition, quantum application engineers can also use CMOS modeling expertise to save a lot of time and cost.
The PathWave platform includes the following:

·WaferPro Express software
The software supports automated wafer-level measurement of semiconductor devices such as transistors and circuit components, providing drivers and test procedures for various instruments and silicon probes. Thanks to a collaboration with a low temperature detection supplier, the tool enables automatic measurement at the chip level at both room and low temperatures.
·

PathWave Device Modeling (IC-CAP)
IC-CAP is the industry standard for modeling DC and RF semiconductor devices. It extracts accurate and compact models for high-speed digital, simulation and RF applications. The IC-CAP device definition, data processing, and simulator interface are highly flexible. In the case of designing new device architectures, this provides great convenience for users to customize new device architectures, models and parametric equations.
·MBP

MBP is a one-stop solution for high-volume model generation, providing automation and flexibility. The software includes an automatic extraction program for industry standard models and an open interface for custom modeling strategies. MBP has a more user-friendly interface and can manage the entire manufacturing library more efficiently than IC-CAP. Users of MBP can easily integrate the manufacturing model library and fine-tune the selected parameters without changing the original architecture of the model library. MBP is therefore recommended for quantum users who wish to adapt existing manufacturing models to low-temperature environments.
·PathWave Model QA(MQA)

MQA is an automated SPICE model validation software that enables users to review and analyze SPICE model libraries, compare models and efficiently generate quality assurance reports. The powerful model library comparison feature enables users to compare any two or more model libraries and helps predict the behavior of next-generation devices.

Keysight provides a comprehensive solution for device characterization, low frequency noise measurement, model parameter extraction and model identification. Industry-standard device modeling tools that leverage existing technologies and semiconductor design platforms save quantum computing users significant scripting and tool development time.
