Beginner's Guide to Stepper Motors

Beginner's Guide to Stepper Motors

March 26 , 2024 0

The purpose of this article is to educate you about stepper motors, starting with their basic principle , as well as their uses, types, advantages, and disadvantages. We will cover these topics as well as other information related to stepper motors.

What Is Stepper Motor？

A stepper motor is a type of electric motor that converts electrical pulses into precise mechanical motion. Unlike conventional motors that continuously rotate, stepper motors move in discrete steps, making them well-suited for applications requiring precise positioning and control.

Stepper Motor Working Principle

A brushed DC motor operates by applying voltage to terminals, causing a wire coil within a fixed magnet housing (known as the stator) to spin rapidly.

As the wire coil (the rotor) rotates, it functions as an electromagnet due to magnetic attraction and repulsion theory. Brushes and a commutator work together to control the direction of current flowing through the wire coil. With sufficient voltage supplied, the rotor spins continuously in one direction.

However, this motor's perpetual spinning, without defined stopping points, poses challenges for precise control. It's unsuitable for applications requiring exact stopping points or minute movements, as manually regulating power flow doesn't offer the precision needed.

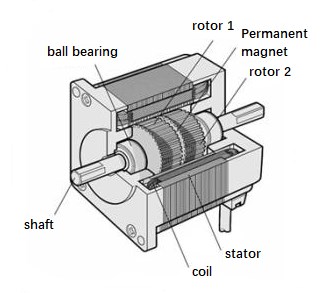

Conversely, a stepper motor operates differently. It features a fixed stator housing surrounding a series of toothed electromagnets at its core, rather than a rotating wire coil within fixed magnets. Controlled by a stepper motor driver, pulsing electrical currents induce precise one-step movements in the gear-like toothed part around the central shaft.

Each pulse pushes the rotor one exact increment of a full turn. The rotor can complete full or partial turns as required, or stop abruptly at any step along its rotation. The key advantage of a stepper motor lies in its ability to locate itself accurately and maintain that position reliably, making it ideal for high-precision applications like robotics and printing.

Types of Stepper Motors

There are several types of stepper motors, including:

1. Permanent Magnet Stepper Motors:

Permanent magnet stepper motors feature a rotor composed of permanent magnets that align with the magnetic field generated by the stator. This design ensures robust torque and detent torque, which resists positional changes even when coils are not energized. While offering reliability, permanent magnet stepper motors typically exhibit lower speeds and resolutions compared to other types.

2. Variable Reluctance Stepper Motors:

Variable reluctance stepper motors boast rotors made of iron cores with specific shapes that facilitate alignment with the magnetic field. Although these motors enable higher speeds and resolutions, they often produce lower torque and lack detent torque. Despite these limitations, variable reluctance stepper motors are valued for their efficiency in certain applications.

3. Hybrid Stepper Motors:

Hybrid stepper motors combine elements of both permanent magnet and variable reluctance designs. Their rotors feature two caps with alternating teeth and axial magnetization, allowing them to harness the advantages of both configurations. Hybrid stepper motors offer high resolution, speed, and torque, making them versatile solutions for various applications. However, achieving such performance requires a more complex construction, resulting in higher costs.

Application of Stepper Motor

Stepper motors have properties that make them ideal for applications that require simple position control and position holding, such as:

Computing
Robotics
DSLR Cameras
Video Cameras
ATM Machines
Scanners and printers, including 3D printers
Automation of systems and packaging equipment
Valve pilot stage placement for fluid control systems
Equipment for accurate placement

1.Stepper Motors in 3D Printing

Stepper motors are integral components of standard 3D printers, facilitating precise movements and rotations during the conversion of digital designs into physical objects. These motors, coupled with drivers, enable meticulous control along the X, Y, and Z axes, ensuring accurate positioning without the need for external sensors or software. They play crucial roles in constructing platforms and extruding filaments, ensuring continuous material supply and seamless printing operations.

2.Stepper Motors in CNC Systems

Stepper motors serve as viable alternatives to servo motors in various CNC (Computer Numerical Control) applications. While traditionally viewed as cost-effective options, modern stepper motors offer comparable flexibility and performance to servo motors. Unlike servo motors, stepper motors do not require encoders, simplifying control mechanisms and reducing susceptibility to failure. Their brushless nature enhances durability, making them ideal for powering CNC machinery across industrial sectors.

3.Stepper Motors for Raspberry Pi Projects

Stepper motors serve as popular peripherals for Raspberry Pi enthusiasts keen on exploring computer programming fundamentals. As users progress from basic LED control to more complex projects, stepper motors provide an accessible platform for learning about motor control and automation. Raspberry Pi starter kits often include provisions for attaching stepper motors, enabling users to build programmable robots and expand their skill sets gradually.

4.Stepper Motors in Camera Technology

Stepper motors find widespread use in high-end camera systems for various applications. They contribute to the mechanical functionalities of surveillance cameras and remote monitoring devices, ensuring precise control over movements. Additionally, stepper motors play essential roles in internal mechanisms such as autofocus and aperture adjustments, guaranteeing optimal performance and image quality. Their attributes, including full torque at standstill and consistent repeatability, make them invaluable in camera positioning rigs and motorized sliders, facilitating smooth and distortion-free video recording in surveillance setups.

Stepper Motors Advantages and Disadvantages

Advantages:

Position Sensing Not Required: Stepper motors inherently determine their position without the need for external sensors. By tracking the number of steps executed, precise motor positioning can be easily achieved.
Simplicity in Control: Controlling stepper motors is straightforward, requiring minimal complexity in calculations or tuning. While a driver is necessary, the overall control effort is relatively low compared to alternative motor types.
High Position Accuracy: Utilizing microstepping enables stepper motors to achieve exceptional position accuracy, reaching up to approximately 0.007°. This precision is invaluable for applications demanding exacting control.
Good Torque at Low Speeds: Stepper motors offer robust torque even at low speeds, making them ideal for tasks requiring consistent holding positions. Additionally, they exhibit a prolonged lifespan, contributing to their reliability in various applications.

Disadvantages:

Risk of Missed Steps: Stepper motors may skip steps under high load torque conditions, affecting control accuracy as the true motor position becomes uncertain. Microstepping exacerbates this issue, increasing the likelihood of missed steps.
Constant Current Drain: Stepper motors continuously draw maximum current, even when stationary. This inefficiency leads to reduced overall efficiency and potential overheating concerns, particularly in prolonged usage scenarios.
Noise Generation: Stepper motors tend to produce noticeable noise, particularly at higher speeds. This can be a drawback in noise-sensitive environments or applications where silent operation is desired.
Low Power Density and Torque-to-Inertia Ratio: Stepper motors exhibit relatively low power density and a modest torque-to-inertia ratio compared to alternative motor types. While suitable for many applications, these characteristics may limit their performance in certain high-demand scenarios.

Conclusion

Stepper motors are exceptionally versatile, reliable, cost-effective, and precise tools for controlling accurate motor movements. They empower users to enhance programmed mobility, dexterity, and efficiency across a diverse range of applications and industries. As a crucial subset within the broader automation and control equipment category, stepper motors play a vital role in various systems and processes.

However, selecting the appropriate configuration is paramount when considering the vast array of stepper motor brands, sizes, torque ratings, design styles, and intended applications available in the global market. Understanding which configurations best suit specific environments is essential for effective planning and procurement.
