What Is the Difference Between Active and Passive Filters?

A filter is an electronic circuit that has the ability to pass or amplify a certain range of frequencies and block or attenuate other frequencies. They are used for filtering specific frequencies from a signal. Filters are used in signal processing such as removal of noise from a signal and extraction of a message from a signal etc.

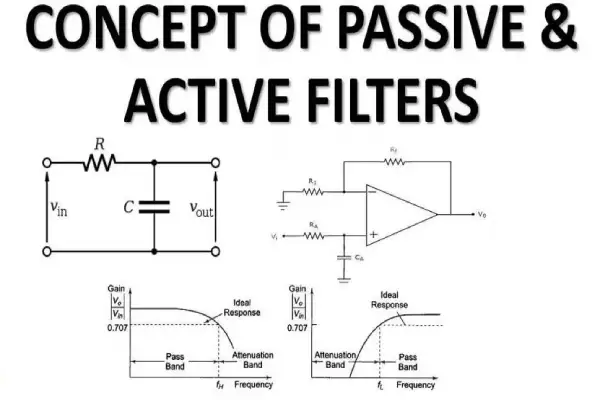

There are various kinds of filters, including low-pass, bandpass, high-pass, analog and digital, passive and active, non-linear and linear, etc. The distinctions between passive and active filters will be covered.

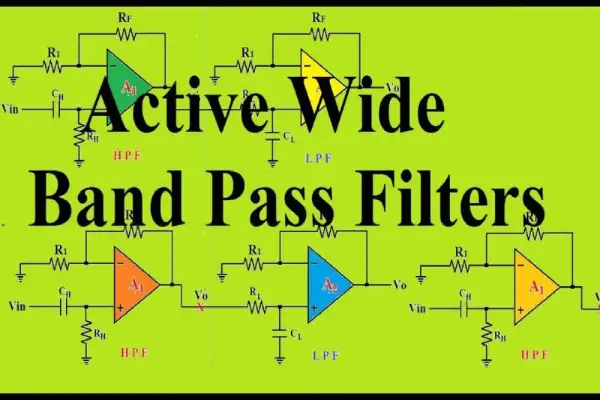

Active filters are designed by incorporating active components such as transistors and op-amps. These filters utilize capacitors and resistors but do not include inductors. Despite their ability to enhance power, active filters have a more intricate design compared to passive filters.

To operate, active filters require an external power source due to their reliance on active components. Unlike passive filters, the filtered signal does not require amplification. The gain can be adjusted during operation by modifying specific parameters. Op-amps exhibit low output and high input impedances, ensuring that the active filter faces no loading effects at its load and source. Moreover, since the load is independent of the source, altering the load does not impact the filter's performance.

However, the need for an external power source is a drawback of active filters, as their effectiveness is influenced by the condition of this source. The active components of active filters have a finite bandwidth, making them unsuitable for high-frequency signal filtering. Additionally, they are more susceptible to damage from strong currents.

Op-amps in the circuit are typically integrated in a compact and lightweight manner. Their low output and high input impedances eliminate loading effects at the load and source of the circuit. Nevertheless, the limited bandwidth of active components can occasionally pose challenges in handling high-frequency signals. Furthermore, the active filtering mechanism necessitates a DC source, as it cannot draw its driving power from the input signal.

Passive filters exclusively incorporate passive components like resistors, inductors, and capacitors in their design. They are cost-effective and boast a straightforward construction. Operating without an external power source, these filters do not contribute any electrical power. Nonetheless, they leverage an inductor to manage high current.

Passive components effectively handle extremely high frequencies, making passive filters suitable for high-frequency applications. However, they are less suitable for extremely low-frequency applications. To enhance inductance, a larger, bulkier inductor is required, leading to an increase in both the filter's size and cost.

The overall resistance of the filter is directly influenced by the load resistance, meaning any adjustments to the load resistor will impact the electrical characteristics of the filter. With constrained output and input impedance, passive filters are susceptible to the effects of loading.
The output signal of passive filters has a lower magnitude compared to the input signal because passive components draw power from the input signal, resulting in a lack of power gain. Consequently, post-filtering amplification is necessary.

Passive filters exhibit a favorable response in the radio frequency band. However, challenges arise in low-frequency applications due to the use of an inductor in the circuit. Similar issues emerge with low frequencies, requiring an increase in the inductor's inductance, necessitating the addition of more turns to the coil.

Below the radiofrequency range, passive filters encounter impedance-related challenges for both input and output. Consequently, they are not well-suited for low-frequency operations. In essence, the classification of filters is determined by the frequency band they allow or restrict.

The key distinction between active filters and passive filters lies in the utilization of active components, such as op-amps and transistors, in active filters to filter electronic signals. In contrast, passive filters generate a signal for a specific band using passive components like inductors, resistors, and capacitors.

Another notable difference is the power source requirement. Active filters necessitate an external power source, while passive filters operate without one.

Filters, as circuits, possess the ability to allow a specific frequency range to pass through while rejecting frequencies outside that band, demonstrating the property of frequency selectivity. Further differentiations between active filters and passive filters can be explored.

Active filters tend to be more expensive due to the inclusion of active components, whereas passive filters are relatively affordable since they rely on passive components. The circuit orientation of active filters is more complex, whereas that of passive filters is simpler.

Active filters, in contrast to passive filters, exhibit a higher quality factor value and depend on an external power source for operation. However, passive filters draw the necessary energy from the supplied input signal, eliminating the need for external power sources.

Ideal for RF range operations, passive filters utilize inductors, which create barriers at very low frequencies. Active filters, on the other hand, provide a stronger response for low frequencies.

In terms of weight, passive filters are relatively heavier compared to the lightweight nature of active filters. Active filters are more sensitive to temperature variations, whereas passive filters are less susceptible to such changes.



• The Active filters need an outside power supply to function.
• Passive filters don’t need an outside power source in order to work.



• The active filters increase output signal as well as offer a significant power gain.
• A passive filter offers no power benefit. In actuality, this output signal is weaker than its own input signal in magnitude.



• The design of the active filter is complex in nature.
• The design of the passive filter is simple in nature.



• Because active filters have high input and low output impedances, loading effect is not a concern.
• Passive filter does have a problem with the loading effect.



• Due to the frequency restrictions of the active components and their constrained bandwidth, active filters are unable to filter signals of high-frequency.
• There are no frequency restrictions for passive filters.



• Passive filter is heavier due to the size of the inductors and are bulkier, especially at low frequencies when big inductors are required.
• The Active filter is compact and possesses a small weight and size.



• Passive filters are manufactured from inexpensive passive components.
• Active filters require expensive active components as well as a power source.
